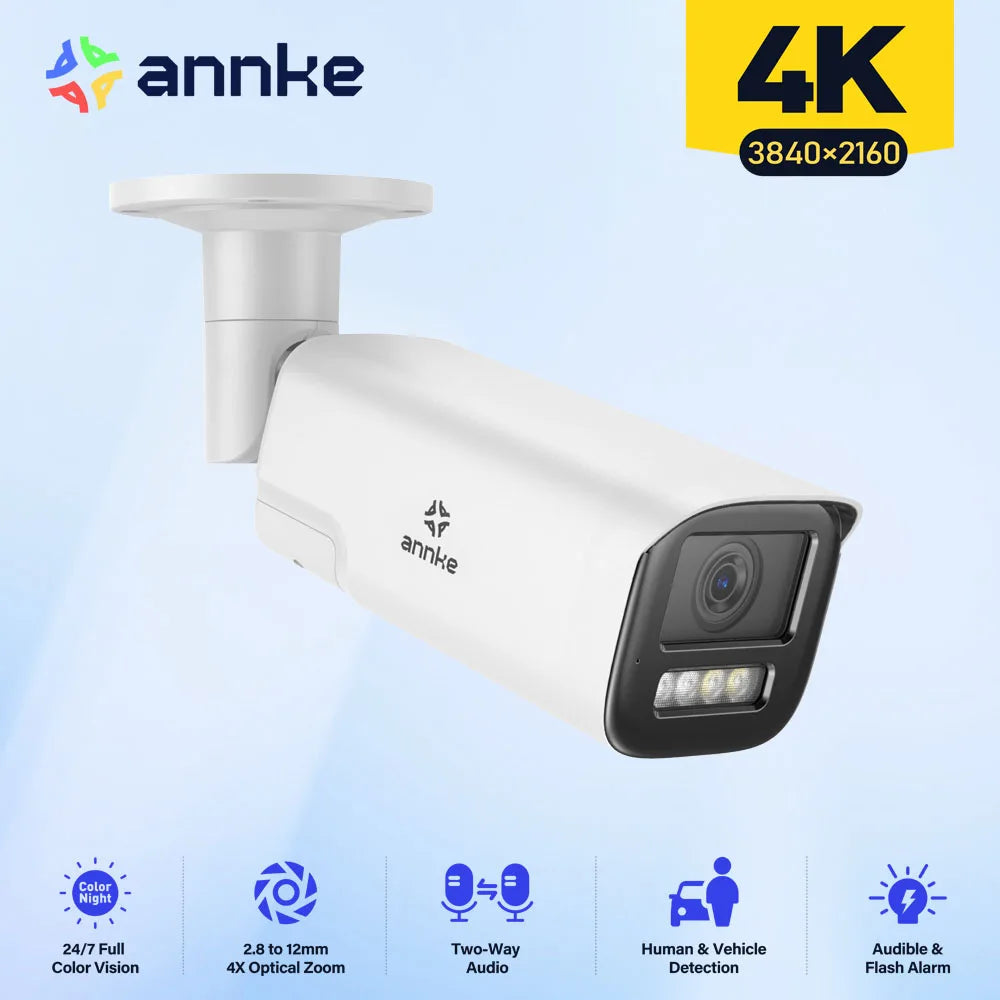

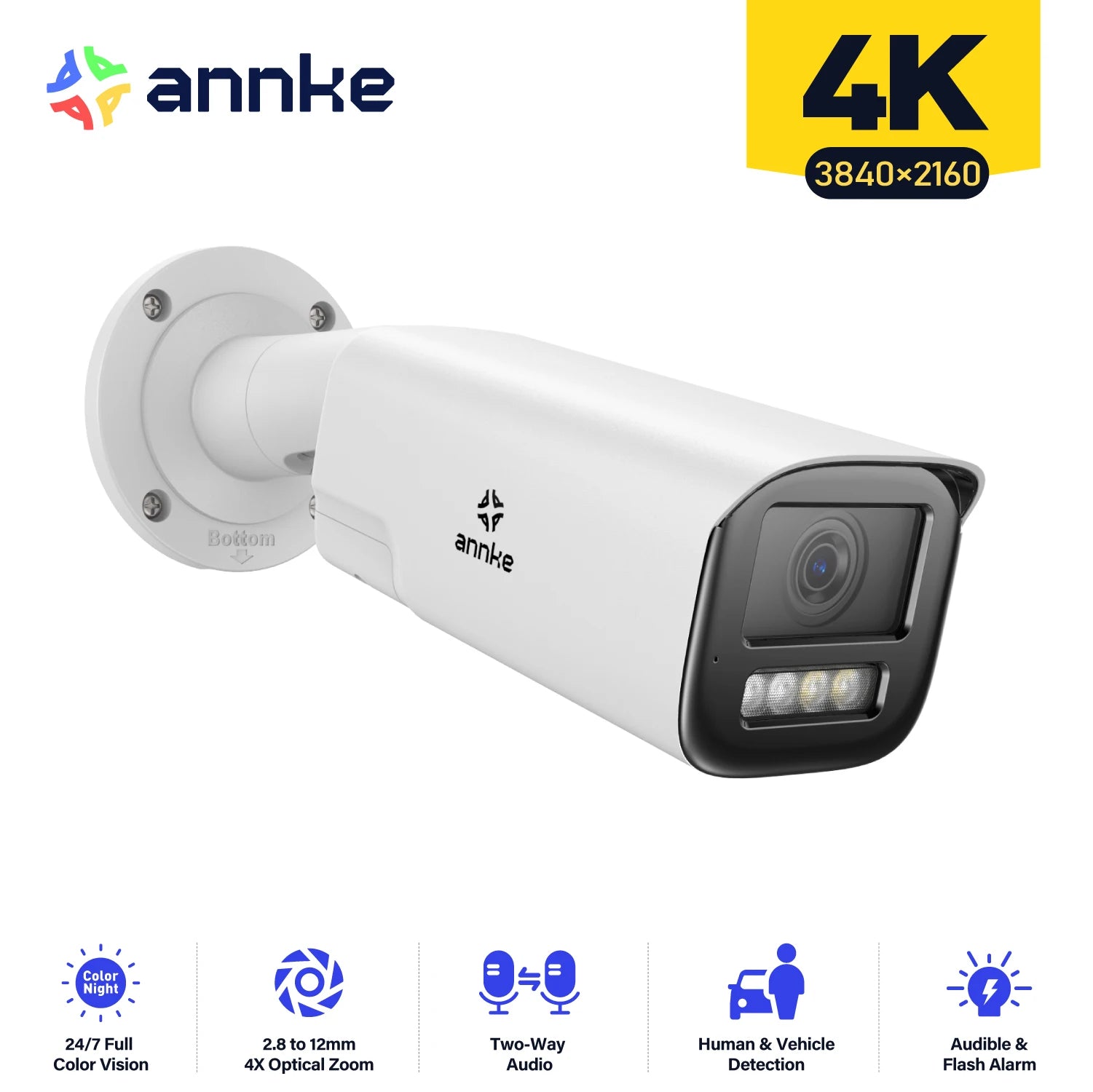

ANNKE 4K 4X Zoom Smart Dual Light Varifocal IP Camera
ANNKE 4K 4X Zoom Smart Dual Light Varifocal IP Camera
Couldn't load pickup availability
Experience 4K clarity with a smart dual-light bullet camera that adapts to any scene.
- 4K 8MP image sensor with a motorized 2.8–12mm varifocal lens for flexible framing from wide to narrow; main stream at 4K runs 12.5fps (50 Hz) or 15fps (60 Hz).
- Smart dual-light with IR and white light delivers color night vision up to 50 m and acts as a deterrent on demand.
- AI-driven motion detection includes human and vehicle detection; integrates with FTP/NAS, memory card, alert emails, and automatic recording or warnings.
- IP67 waterproof housing supports PoE and DC12V, two-way audio via built-in mic and speaker, plus on-board storage up to 512 GB.
IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Built-in Microphone |
Record with audio, environment noise filtering |
|
Built-in Speaker |
Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB. |
|
Lens |
2.8 to 12 mm motorized varifocal |
|
DORI |
D: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 50 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G),ISAPI |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Web Browser |
Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
APP |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
12 VDC ± 25%, 0.9 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W |
|
Operating Conditions |
-22 °F – 140 °F/-30 °C – 60 °C.Humidity 95% or less (non-condensing) |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
105 mm × 285.8 mm (Ø4.13" × 11.25") |
|
Weight |
Approx. 805 g (1.8 lb.) |
|
